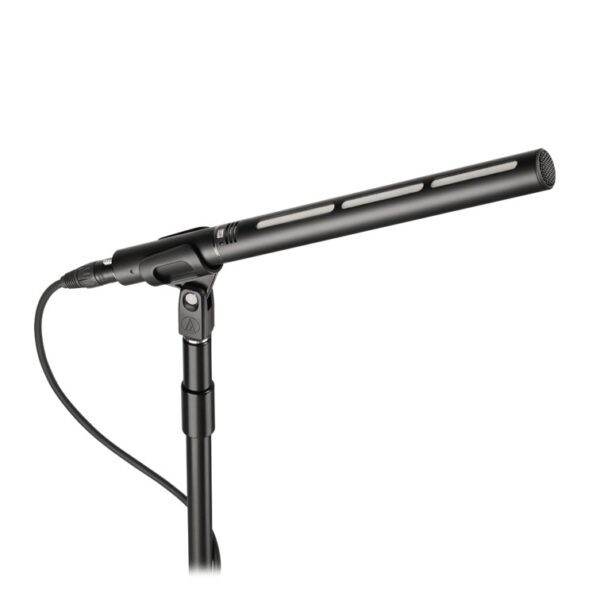

Audio Technica BP28 Shotgun Microphone - Image 1

Audio Technica BP28 Shotgun Microphone

Audio Technica BP28L Line + Gradient Large Diaphragm Condenser Microphone
Audio Technica AT4060A Cardioid Condenser Tube Microphone

$1,429.00

  • Large-diaphragm shotgun microphone for broadcast and film production.
  • Highly directional pickup for precise long-distance recording.
  • Low self-noise and high sensitivity for clean audio capture.
  • Switchable low-cut filter and pad for demanding environments.
  • Phantom-powered condenser design with durable aluminum housing.
Categories: , , Brand:

Description

Audio-Technica BP28 Shotgun Microphone is a professional large-diaphragm condenser microphone designed for broadcast, film, television, outdoor recording, and theater applications. This highly directional shotgun microphone combines a large-diaphragm condenser element with an optimized acoustic design to deliver extremely tight pickup patterns for long-range sound capture.

With an overall length of approximately 35.5 cm, the BP28 provides focused audio pickup with excellent rejection of off-axis noise, making it ideal for filmmaking, location recording, and stage production. Its transformer-coupled output produces a smooth sonic character, while the large-diaphragm design offers very low self-noise, high sensitivity, and wide dynamic range.

The microphone features a patented acoustic port design that maintains consistent directionality across the entire frequency range for accurate sound reproduction. A switchable 80 Hz high-pass filter helps reduce unwanted low-frequency noise, and a 10 dB pad allows the microphone to handle louder sound sources.

Constructed from lightweight structural-grade aluminum alloy, the Audio-Technica BP28 is built for durability in demanding environments while remaining suitable for boom operation and on-location recording. Phantom-powered operation ensures compatibility with professional audio equipment.

Key Features

• Large-diaphragm shotgun microphone for broadcast, film, TV, and theater use

• Highly directional pickup pattern for long-distance sound recording

• Large-diaphragm condenser element for low-noise performance

• Transformer-coupled output delivers smooth sonic character

• High sensitivity, wide dynamic range, and high SPL capability

• Patented acoustic port design maintains directionality across frequencies

• Switchable 80 Hz high-pass filter reduces unwanted noise

• Switchable 10 dB pad for loud sound sources

• Rugged lightweight aluminum alloy housing

• Phantom-powered operation for professional equipment

Specification

• Element: Fixed-charge back plate, permanently polarized condenser

• Polar Pattern: Line directional

• Frequency Response: 20 – 19,000 Hz

• Low-Frequency Roll-Off: 80 Hz, 18 dB/octave

• Sensitivity: -28 dB (39.8 mV) (0 dB = 1 V/Pa, 1 kHz)

• Maximum Input Sound Level: 143 dB SPL (1 kHz at 1% THD); 153 dB SPL with pad on

• Noise: 8 dB SPL (A-weighted)

• Dynamic Range: 135 dB (1 kHz at Max SPL)

• Signal-to-Noise Ratio: 86 dB (1 kHz at 1 Pa, A-weighted)

• Power Requirements: Phantom power: 11 – 52 V DC, 3.4 mA

• Switches: Low cut on/off; Pad on/off

• Output Connector: Integral 3-pin XLR-M type

• Dimensions: 354.9 mm long; 28.0 mm maximum body diameter

• Weight: 223 g

• Audio-Technica Case Style: SG6
