Audio Technica VM750SH Dual Moving Magnet Cartridge
$528.00
• Premium VM dual magnet cartridge with nude Shibata stylus
• Extended 20–27,000 Hz frequency response for high-resolution playback
• Dual magnet design improves channel separation and imaging
• Aluminum tapered cantilever for precise tracking performance
• Die-cast aluminum housing reduces vibration and interference
• Recommended tracking force 1.8–2.2 g (2.0 g standard)
• Compatible with 1/2-inch mount turntables
• Includes mounting hardware, tools, and accessories
- Description
Description

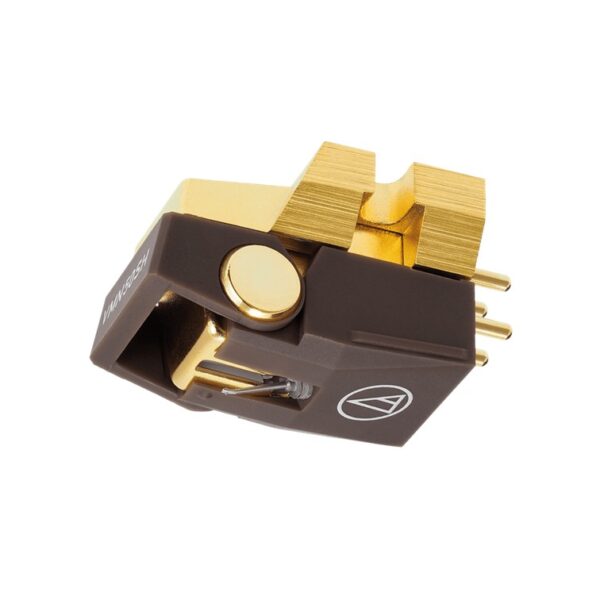

Audio-Technica VM750SH Dual Moving Magnet Shibata Stylus Cartridge
The Audio-Technica VM750SH is a premium dual moving magnet stereo cartridge engineered for high-fidelity vinyl playback. Equipped with Audio-Technica’s advanced dual magnet design, the cartridge precisely mirrors the left and right channels of a stereo record groove, delivering outstanding channel separation, clarity, and imaging.
Featuring a nude Shibata stylus, the VM750SH achieves greater groove contact than conventional elliptical designs, enabling accurate tracking of ultra-high frequencies while minimizing distortion and record wear. The stylus is mounted on an aluminum tapered cantilever for excellent responsiveness and transient performance.
Paratoroidal coils enhance generating efficiency, while a center shield plate between channels reduces crosstalk for cleaner stereo reproduction. The die-cast aluminum alloy housing further suppresses vibration and provides natural electrical shielding, ensuring stable, noise-free performance.
Designed for serious audiophiles and high-end turntable systems, the VM750SH delivers refined tonal balance, extended frequency response, and highly detailed sound reproduction across all music genres.
Key Features
• Premium VM dual magnet stereo cartridge with Shibata stylus
• Nude square shank Shibata stylus for high-resolution playback
• Dual magnet design mirrors left and right groove channels
• Aluminum tapered cantilever for precise tracking and dynamics
• Paratoroidal coils improve signal generating efficiency
• Center shield plate reduces crosstalk between channels
• Die-cast aluminum housing minimizes vibration and interference
• Extended frequency response for detailed, natural sound
• Ideal for audiophile vinyl playback systems
Specification
| • Cartridge Type: | |
| • Design | Dual moving magnet (VM type) stereo cartridge |
| • Mount Type | 1/2” centres |
| • Weight | 8.0 g |
| • Stylus & Cantilever: | |
| • Stylus Shape | Shibata |
| • Stylus Construction | Nude square shank |
| • Stylus Size | 0.26 × 2.7 mil |
| • Cantilever | Aluminum tapered pipe |
| • Replacement Stylus | VMN50SH |
| • Audio Performance: | |
| • Frequency Response | 20 – 27,000 Hz |
| • Channel Separation | 30 dB (1 kHz) |
| • Output Voltage | 4.0 mV (1 kHz, 5 cm/sec.) |
| • Channel Balance | 1.0 dB (1 kHz) |
| • Tracking & Compliance: | |
| • Vertical Tracking Angle | 23° |
| • Tracking Force | 1.8 – 2.2 g (2.0 g standard) |
| • Static Compliance | 40 × 10⁻⁶ cm/dyne |
| • Dynamic Compliance | 10 × 10⁻⁶ cm/dyne (100 Hz) |
| • Electrical Characteristics: | |
| • Recommended Load Impedance | 47,000 Ω |
| • Coil Impedance | 2,700 Ω (1 kHz) |
| • Recommended Load Capacitance | 100 – 200 pF |
| • Dimensions: | |
| • Size (H × W × L) | 17.3 × 17.0 × 28.2 mm |
