Blackmagic ATEM 1 M/E Advanced Panel 10
$4,095.00
• 10 direct crosspoints (20 with shift)
• Tri-color LED curved buttons
• 3-axis joystick + weighted T-bar
• Built-in LCD labeling and menus
• Dual Ethernet with loop-through
• Rack-mount ready
- Description
Description

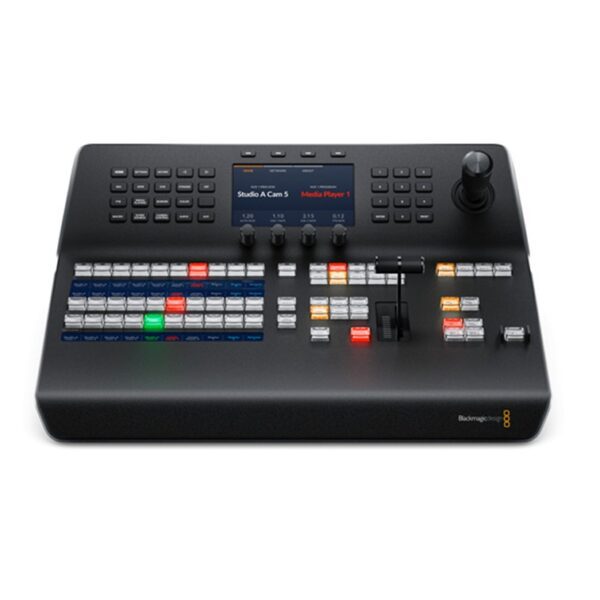

ATEM 1 M/E Advanced Panel 10
The ATEM 1 M/E Advanced Panel 10 is a professional hardware control surface designed for all ATEM switchers, delivering fast, tactile, and reliable operation for live broadcast and production environments.
The modern, low-profile design features a built-in LCD display and high-quality curved buttons that reduce accidental presses while providing clear visual feedback through tri-color LED backlighting. Dynamic button labeling allows full customization of source names and colors directly from the switcher.
A precision 3-axis joystick enables accurate DVE and camera control, while the smooth, weighted T-bar fader gives broadcast-style transitions with natural resistance and control.
With shiftable source buttons, the panel supports control of up to 20 inputs, effectively doubling the number of selectable sources from a compact 10-crosspoint layout.
Designed to fit a standard equipment rack, the ATEM 1 M/E Advanced Panel 10 is ideal for control rooms, OB trucks, mobile racks, and fly-away broadcast kits.
Key Features
• 10 direct crosspoints (expandable to 20 via shift)
• Tri-color LED curved buttons
• 3-row 24-character LCD labeling
• Professional 3-axis joystick
• Smooth weighted T-bar fader
• Built-in LCD menu displays
• Ethernet loop-through for daisy chaining
• Rack-mount friendly design
| • Ethernet: 2 x 10/100/1000 BaseT with loop output |
| • Firmware Updates: 1 x USB-C |
| • Direct Cross Points: 10 |
| • Shifted Cross Points: 20 |
| • Crosspoint Button Type: Tri-Color LED |
| • Crosspoint Label: 3 rows, 24 characters LCD |
| • On-Air Indicators: 4 |
| • Power Status Indicators: None |
| • DSK Transition Selectors: Auto, Cut, Tie/Preview |
| • Preview Transition: 1 |
| • Transition Rate Displays: Via main menu |
| • LCD Menu Displays: 3 |
| • Menu Control Buttons: 20 |
| • Dedicated Macro Buttons: 10 |
| • Multi Control Buttons: None |
| • Destination Bus: 1 |
| • Source Select Bus: 1 |
| • Fader Bar: 1 (weighted T-bar) |
| • 3-Axis Joystick: 1 |
| • Numeric Keypad: 1 |
| • Software Control: ATEM Software Control Panel |
| • Operating Systems: macOS 14 Sonoma or later macOS 15 Sequoia or later Windows 10 and 11 |
| • Input Voltage: Internal 100–240V AC |
| • Redundant Power: Yes |
| • Power Usage: 45 W |
| • Operating Temperature: 0°C – 40°C |
| • Storage Temperature: -20°C – 60°C |
| • Relative Humidity: Up to 95% |
