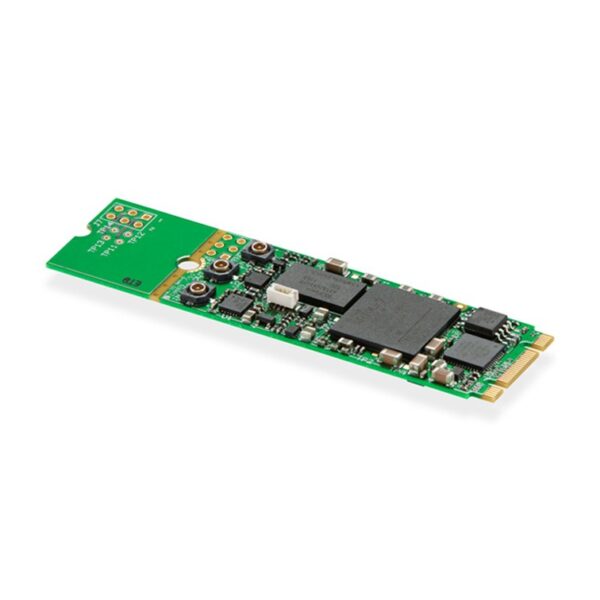

Blackmagic DeckLink SDI Micro
$190.00
• Mini M.2 3G-SDI card
• Capture & playback up to 1080p60
• Supports Black Burst & Tri-Sync
• Ideal for compact PCs
• Broadcast-grade performance
- Description
Description
DeckLink SDI Micro
The DeckLink SDI Micro is a miniature M.2 capture and playback card designed for compact and portable systems.
It provides professional 3G-SDI connectivity for simultaneous video capture and playback in all SD and HD formats up to 1080p60.
With Black Burst and Tri-Sync reference input support, DeckLink SDI Micro is ideal for broadcast, live production, and professional media workflows where synchronization is critical.
Its ultra-compact M.2 form factor makes it perfect for use in small form factor PCs, portable rigs, and custom-built media workstations.
Key Features
• Miniature M.2 form factor
• 3G-SDI capture and playback
• Supports SD and HD up to 1080p60
• Includes Black Burst and Tri-Sync reference input
• Ideal for portable and compact systems
Specification
| • Product: DeckLink SDI Micro |
| • Interface: M.2 PCI Express 1 lane Gen 3 (B & M key, 2260/2280) |
| • Video Support: SD and HD up to 1080p60 |
| • SDI Sampling: 4:2:2, 4:4:4 |
| • Color Precision: 8/10/12-bit RGB 4:4:4 (up to 1080p30); 8/10-bit YUV 4:2:2 |
| • SDI Compliance: SMPTE 259M, 292M, 296M, 424M, 425M A/B, ITU-R BT.656/601 |
| • Power Consumption: 4.03 W (max) |
| • Operating Temperature: 0°C to 50°C |
| • Storage Temperature: -40°C to 75°C |
| • Relative Humidity: 0% to 90% non-condensing |
| • OS Support: macOS 15 Sequoia / macOS 26 Tahoe+, Windows 10/11 (64-bit), Linux |
