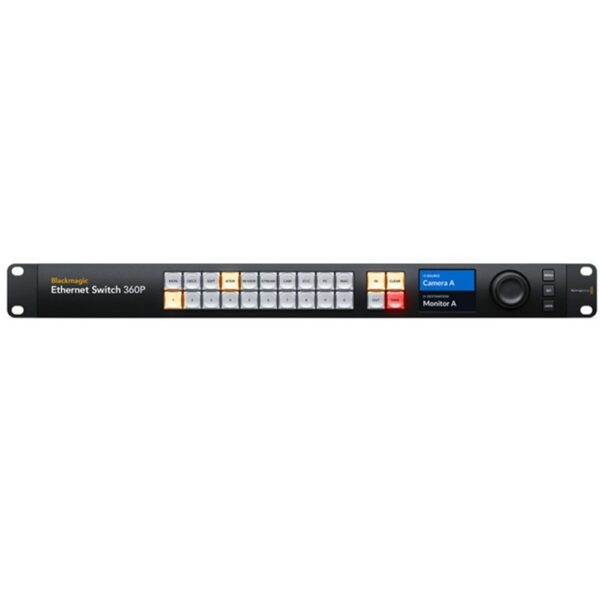

Blackmagic Ethernet Switch 360P - Image 1

Blackmagic Ethernet Switch 360P

Blackmagic 2110 IP Mini IP to HDMI
Blackmagic SmartView 4K G3

$3,955.00

• 16 x 10G RJ-45 + 2 x 100G QSFP28
• Designed for SMPTE ST-2110 workflows
• Built-in SDI & HDMI monitoring
• NMOS IS-04 / IS-05 compliant
• PTP timing (ST 2059)
• 1RU rack-mount switch

Categories: , , Brand:

Description

Blackmagic Ethernet Switch 360P

The Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for film, television, and live IP broadcast production. It is a high-performance, low-latency switch built for modern SMPTE ST 2110 workflows, providing reliable, deterministic networking for professional media environments.

Featuring 16 x 10G RJ-45 ports and 2 x 100G QSFP28 ports, the 360P supports both high-speed copper and long-distance fiber connections, making it ideal for studio facilities, OB vans, remote production, and large broadcast campuses.

Rear Ethernet connections provide clean cable management in rack installations, while built-in SDI and HDMI monitor outputs allow real-time status monitoring without needing a separate computer.

With full NMOS IS-04 and IS-05 support, Precision Time Protocol (PTP) compliance, and professional control via front panel or software, the Blackmagic Ethernet Switch 360P integrates seamlessly into modern IP video infrastructures.

Key Features

• 16 x 10G RJ-45 Ethernet ports
• 2 x 100G QSFP28 uplink ports
• Designed for SMPTE ST 2110 IP workflows
• Low-latency, broadcast-grade switching
• Built-in SDI and HDMI monitoring
• NMOS IS-04 / IS-05 compliant
• PTP timing support (ST 2059)
• Rack-mount 1RU design

• 10G Ethernet Ports: 16 x 10Gb/s RJ-45 (100/1000/10G BASE-T)
• 100G Ethernet Ports: 2 x 100Gb/s QSFP28
• SDI Monitor Output: 1
• HDMI Monitor Output: 1
• Computer Interface: USB-C
• Precision Time Protocol (PTP):
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
• NMOS IS-04: v1.3.2 (Discovery & Registration)
• Peer Discovery: mDNS / DNS-SD
• NMOS IS-05: v1.1.2 (Connection Management)
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver Capabilities
• SDI Monitor Standards: 1080p50 / 59.94 / 60
• HDMI Monitor Standards: 1080p50 / 59.94 / 60
• Monitor Display: Device name, network connections, network activity
• Front Panel Display: 2.2″ color LCD
• Built-in Control Panel:
24 buttons for local control
3 buttons + search dial for menu navigation
• Software Upgrade: Via included updater application
• Operating Systems:
macOS 13 Ventura or later
macOS 14 Sonoma or later
Windows 10 / 11 (64-bit)
• Power Supply: Internal 100–240V AC, 50/60Hz (IEC C14)
• Power Inputs:
1 x IEC C14 AC input
1 x 4-pin XLR +12V DC input
• Power Usage: 100 W
• Form Factor: 1RU rack unit
• Operating Temperature: 5°C – 40°C
• Storage Temperature: -20°C – 45°C
• Humidity: 0–90% non-condensing
