Blackmagic HyperDeck Extreme 4K HDR
$4,095.00
• Native 4K HDR recording with efficient H.265
• 7” 2000-nit HDR touchscreen monitoring
• 12G-SDI + HDMI + analog inputs
• 64-channel embedded SDI audio
• Optional NVMe cache recording
• RS-422 & 10Gb Ethernet control
- Description
Description

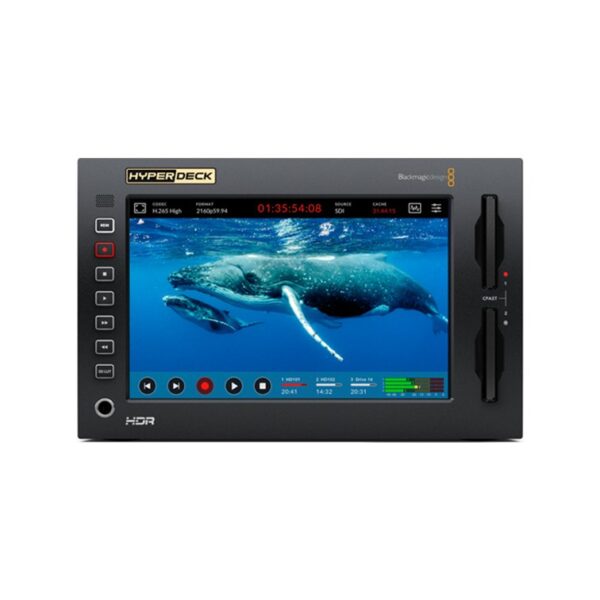

HyperDeck Extreme 4K HDR
HyperDeck Extreme 4K HDR delivers the trusted reliability of Blackmagic HyperDeck with next-generation recording technology for broadcast, live production, and high-end post workflows. Designed for professional environments, it combines robust hardware, intuitive touchscreen control, and advanced codec support to ensure dependable, high-quality capture and playback.
With native 4K recording, HDR support, and space-saving H.265 codecs, this deck significantly reduces storage requirements while preserving exceptional image quality. The built-in 7-inch 2000-nit HDR LCD provides clear, accurate monitoring with comprehensive heads-up display including timecode, video standard, media status, and audio meters.
Featuring multi-format SDI and HDMI connectivity, embedded multi-channel audio, timecode, and reference inputs, the HyperDeck Extreme 4K HDR integrates seamlessly into professional broadcast chains, OB vans, and studio environments. Optional internal NVMe cache recording further enhances reliability for mission-critical workflows.
Key Features
• Records up to native 4K with efficient H.265 codecs
• 7” 2000-nit DCI-P3 HDR touchscreen display
• Supports 12G-SDI, HDMI, component and composite inputs
• 64-channel embedded SDI audio
• Optional internal NVMe cache recording
• Professional timecode and reference connectivity
• RS-422 deck control and Ethernet protocol support
• Built-in scopes: waveform, vectorscope, histogram
• 3D LUT support for accurate color monitoring
• Video Inputs: 1 x 12G-SDI, 1 x HDMI 2.0, Component YUV (3 x BNC), Composite NTSC/PAL (1 x BNC)
• Video Outputs: 3 x SDI (12G-SDI A, 12G-SDI B, 3G-SDI Monitor Out), 1 x HDMI 2.0
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• Audio Inputs: 4 x balanced XLR, 2 x RCA unbalanced
• Embedded Audio: 64 channels SDI in/out, 8 channels HDMI in/out
• Screen: 7″ 1920×1200, 2000-nit DCI-P3 HDR LCD
• Timecode: 1 x XLR In, 1 x XLR Out
• Reference: Tri-Sync / Black Burst
• Ethernet: 10Gb/s (HyperDeck Ethernet Protocol)
• External Recording: USB-C 3.1 Gen 2 (10Gb/s)
• Media Slots: 2 x CFast 2.0
• Cache Recording: Optional M.2 NVMe PCIe (60/80/110mm)
• File Systems: ExFAT (Win/Mac) or HFS+ (Mac)
• Video Codecs: ProRes (HQ/422/LT/Proxy), DNxHD, DNxHR, H.265, H.264
• Audio Codecs: AAC 2-ch, PCM up to 64-ch
• Scopes: Waveform, RGB Parade, Vector, Histogram
• Control: Touchscreen UI, RS-422, SDI start/stop, Timecode run
• Power:
