Blackmagic Studio Fiber Converter

Description

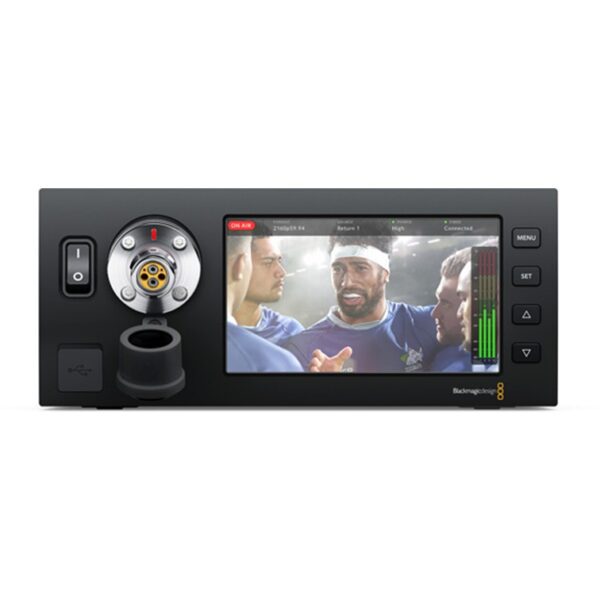

Blackmagic Studio Fiber Converter

The Blackmagic Studio Fiber Converter enables remote camera operation up to 2 km from your studio or outside broadcast truck using standard SMPTE fiber. It converts SDI video, audio, and remote camera control into a single optical fiber link that connects to a Blackmagic Camera Fiber Converter at the camera end.

All video and data are transmitted using standard IP for extremely low-latency, broadcast-quality performance. The unit provides 12G-SDI for a primary HD or Ultra HD camera feed plus three independent HD return feeds, along with connections for camera control, PTZ, dual-channel talkback intercoms, tracker talkback, and tally.

A built-in 5-inch LCD screen allows you to monitor the camera feed and return signals directly from the rack. The converter also supplies power to remote cameras and accessories over fiber, simplifying cabling for professional live production, broadcast, and studio installations.

---

Key Features

• SMPTE hybrid fiber link up to 2 km
• 12G-SDI primary camera feed
• 3 independent HD return feeds
• Integrated 5″ LCD for monitoring
• Dual talkback channels + tracker talkback
• Tally, PTZ, and camera control support
• Powers remote camera via fiber

Specification

• Optical Fiber Input: 1 x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector

• SDI Video Inputs: 3 x 12G-SDI return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1
• SDI Video Outputs: 2 x 12G-SDI for Ultra HD up to 60p

• Talkback Audio: SDI channels 15 and 16 for Production; analogue in/out via 25-pin connector for Production and Engineering talkback
• Balanced XLR Audio Outputs: 4 x camera analogue audio outputs

• Optical Fiber Outputs: 1 x Optical I/O via 10 Gb-E (not currently active)
• Computer Interface: 1 x USB-C

• HD Video Standards: 720p50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30; 1080i50/59.94/60
• Ultra HD Standards: 2160p23.98/24/25/29.97/30/50/59.94/60

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
• Audio Sampling: 48 kHz, 24-bit A/D
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 709, REC 2020
• Multiple Rate Support: Auto switching between HD, 3G-SDI, 6G-SDI and 12G-SDI

• Software Included: Camera Utility for firmware updates
• Operating Systems: macOS Ventura 13+, Sonoma 14+; Windows 10/11

• Power Input: 100–240V AC

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: −20° to 45° C (−4° to 113° F)
