Blackmagic Teranex Mini 12G-SDI to Quad SDI

Description

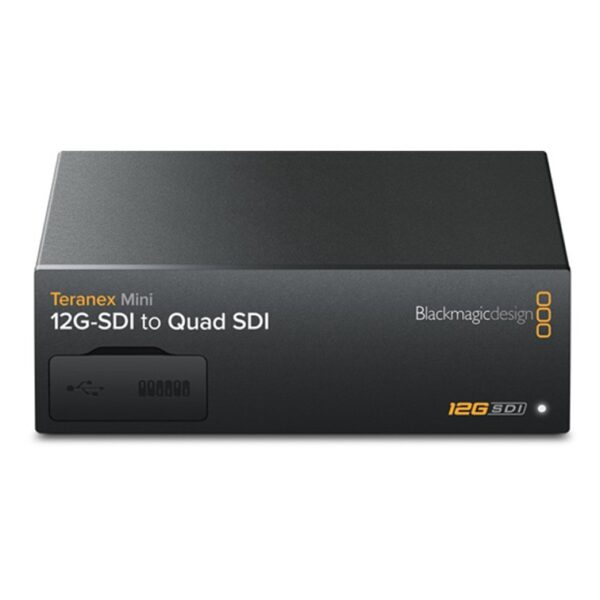

Teranex Mini 12G-SDI to Quad SDI

The Teranex Mini 12G-SDI to Quad SDI converts a single 12G-SDI signal into four 3G-SDI outputs, allowing modern 12G Ultra HD equipment to work seamlessly with legacy Quad Link Ultra HD systems.

It also enables Ultra HD SDI signals to be split into four HD outputs, making it ideal for creating video wall displays using standard HD monitors or processors.

The unit includes a 12G-SDI loop-through, supports both Level A and Level B 3G-SDI, and features automatic multi-rate switching, SDI reclocking, and remote configuration via USB or Ethernet. It can be powered by either AC or PoE+, making it suitable for studios, broadcast racks, and installation environments.

---

Key Features

• Converts 12G-SDI to Quad 3G-SDI
• Enables Ultra HD to HD video wall workflows
• 12G-SDI loop-through included
• Supports Level A and Level B 3G-SDI
• Automatic SD/HD/2K/4K switching
• SDI reclocking for clean signal integrity
• Powered by AC or PoE+

Specification

• SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K (auto switching)
• SDI Video Outputs: 4 x 3G-SDI + 1 x 12G-SDI loop output

• Embedded Audio Support: 16 channels
• Multi Rate Support: Automatic SD/HD/2K/4K switching
• Reclocking: Yes
• Updates & Configuration: USB or Ethernet

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Standards: 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30
• 2K DCI: 2Kp23.98/24/25; 2KPsF23.98/24/25
• Ultra HD: 2160p23.98/24/25/29.97/30/50/59.94/60
• 4K DCI: 4Kp23.98/24/25

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M, 425M (A & B), 2081-1, 2081-10, 2082-1, 2082-10
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: 48 kHz, 24-bit
• SDI Color Space: YUV & RGB

• Settings Control: Mini switches, USB and Ethernet via free software
• Optional Control: Front Smart Panel with LCD and rotary knob
• Operating Systems: macOS Catalina 10.15+, Big Sur 11.1+; Windows 10 (64-bit)

• Power Supply: Built-in AC with IEC C14 inlet
• Power over Ethernet: PoE+ (48V DC supported)
• Power Consumption: 16W
• Voltage Range: 100–240V AC

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: −20° to 60°C (−4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing
