Blackmagic Teranex Mini HDMI to Optical 12G

Description

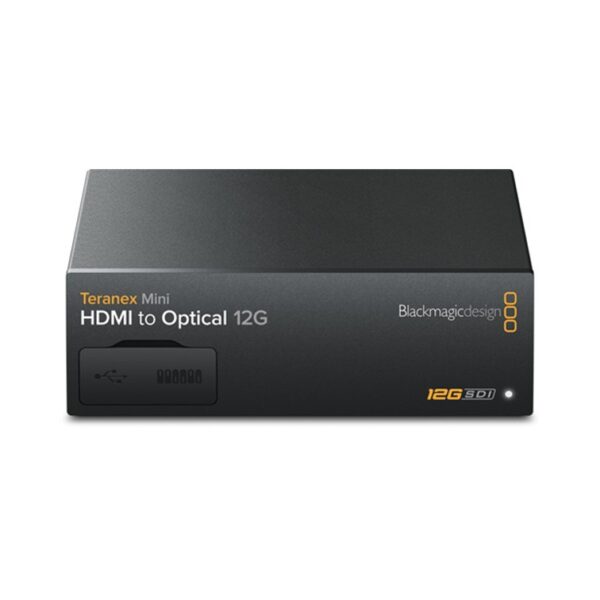

Teranex Mini HDMI to Optical 12G

The Teranex Mini HDMI to Optical 12G converts HDMI video and embedded audio to professional 12G-SDI and optional SMPTE optical fiber, allowing long-distance transmission over 3G, 6G or 12G fiber links.

It supports Ultra HD up to 2160p60, includes an up-converter for viewing SD and HD sources on 4K displays, and provides professional XLR audio connections for high-quality analog or digital audio workflows.

An optional SFP module (sold separately) allows you to choose the exact 3G, 6G or 12G optical format that matches your system. The unit can also be remotely managed via Ethernet and expanded with an optional Smart Panel for front-panel LCD monitoring and push-button control.

---

Key Features

• HDMI to 12G-SDI and optical fiber conversion
• Supports Ultra HD up to 2160p60
• Up-converts SD/HD to Ultra HD displays
• Optional SMPTE optical SFP module (sold separately)
• Professional XLR analog and AES/EBU audio inputs
• USB + Ethernet control and firmware updates
• Optional front Smart Panel with LCD controls
• AC or PoE+ powered

Specification

• SDI Video Input (optional): 3G/6G/12G Optical SFP
• SDI Video Output: 1 x 12G-SDI
• HDMI Input: 1 x HDMI 2.0 Type-A (supports 2160p60)
• Optical Fiber Output (optional): 3G/6G/12G SFP, auto matches HDMI input format

• Analog Audio Inputs: 2 x balanced XLR (Right XLR configurable for timecode)
• Digital Audio Inputs: 4 x AES/EBU via XLR (Right XLR configurable for timecode)
• Embedded Audio Support: 16 channels
• Multi-rate Support: Automatic SD/HD/2K/4K switching
• Reclocking: Yes
• Updates & Configuration: USB and Ethernet

• Optical Output Standards – SD: 525i59.94 NTSC, 625i50 PAL
• HD Standards: 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60
• 2K DCI: 2Kp23.98/24/25
• Ultra HD: 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60
• 4K DCI: 4Kp23.98/24/25

• SDI Compliance: SMPTE 259M, 292M, 296M, 297M (optical), 372M, 424M, 2081-1, 2081-10, 2082-1, 2082-10
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: 48 kHz, 24-bit
• SDI Color Precision: YUV 4:2:2 and RGB 4:4:4
• SDI Color Space: REC 601, REC 709

• HDMI Input Standards: 525i59.94 NTSC, 625i50 PAL; 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60; 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60; 4Kp23.98/24/25
• HDMI Color Space: REC 601, REC 709
• Copy Protection: Cannot capture copy-protected HDMI sources

• Software Control: Mac and Windows via USB or Ethernet
• Basic Control: Mini switches + software utility
• Optional Control: Front Smart Panel with LCD and rotary knob
• Operating Systems: macOS Catalina 10.15+, Big Sur 11.1+; Windows 10 (64-bit)

• Power Supply: Built-in AC with IEC C14 inlet
• PoE Support: PoE+ (48V DC)
• Power Consumption: 16 W
• Voltage Range: 100–240V AC

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: −20° to 60°C (−4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing
