Blackmagic Teranex Mini SDI to Audio 12G

Description

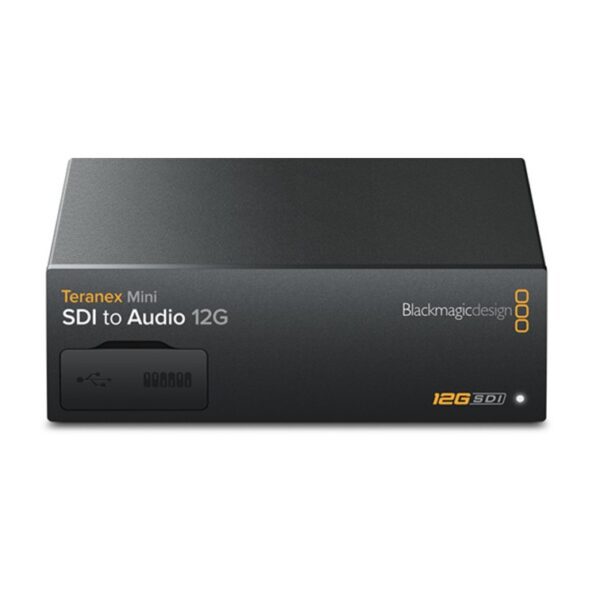

Teranex Mini SDI to Audio 12G

The Teranex Mini SDI to Audio 12G allows you to de-embed audio from any SD, HD, 2K or Ultra HD SDI video signal and convert it to professional analog or digital audio outputs.

It provides 2 channels of balanced analog audio via XLR, unbalanced RCA outputs, or 4 channels of AES/EBU digital audio, making it compatible with a wide range of audio equipment including mixers, broadcast decks, audio monitors, and professional recording systems.

The unit supports up to 16 channels of embedded SDI audio, features automatic multi-rate switching, SDI reclocking, and can be controlled via USB or Ethernet. It can also be powered via standard AC or PoE+ for flexible installation in studios, broadcast facilities, and live production environments.

---

Key Features

• De-embed audio from SD/HD/2K/4K SDI
• 2 channels balanced analog XLR output
• 4 channels AES/EBU digital audio output
• Supports 16 channels embedded SDI audio
• Optical S/PDIF output via TOSLINK
• Automatic multi-rate switching
• SDI reclocking for clean signal integrity
• Power via AC or PoE+

Specification

• SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K (auto switching)
• SDI Video Outputs: 1 x 12G-SDI loop output

• Analog Audio Outputs:
– 2 channels balanced XLR
– 2 channels unbalanced RCA
– Right XLR configurable for timecode

• Digital Audio Outputs:
– 4 channels AES/EBU via XLR
– Right XLR configurable for timecode

• Optical Audio Output: S/PDIF via TOSLINK
• Embedded Audio Support: 16 channels
• Multi Rate Support: Automatic SD/HD/2K/4K switching
• Reclocking: Yes
• Updates & Configuration: USB or Ethernet

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Standards: 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30
• 2K DCI: 2Kp23.98/24/25; 2KPsF23.98/24/25
• Ultra HD: 2160p23.98/24/25/29.97/30/50/59.94/60
• 4K DCI: 4Kp23.98/24/25

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M, 425M (A & B), 2081-1, 2081-10, 2082-1, 2082-10
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: 48 kHz, 24-bit
• SDI Color Precision: YUV 4:2:2 and RGB 4:4:4
• SDI Color Space: REC 601, REC 709

• Settings Control: Mini switches, USB and Ethernet via free software
• Optional Control: Front Smart Panel with LCD and rotary knob
• Operating Systems: macOS Catalina 10.15+, Big Sur 11.1+; Windows 10 (64-bit)

• Power Supply: Built-in international AC with IEC C14 inlet
• Power over Ethernet: PoE+ (48V DC supported)
• Power Consumption: 16W
• Voltage Range: 100–240V AC

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: −20° to 60°C (−4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing
