Blackmagic URSA Studio Viewfinder G2

Description

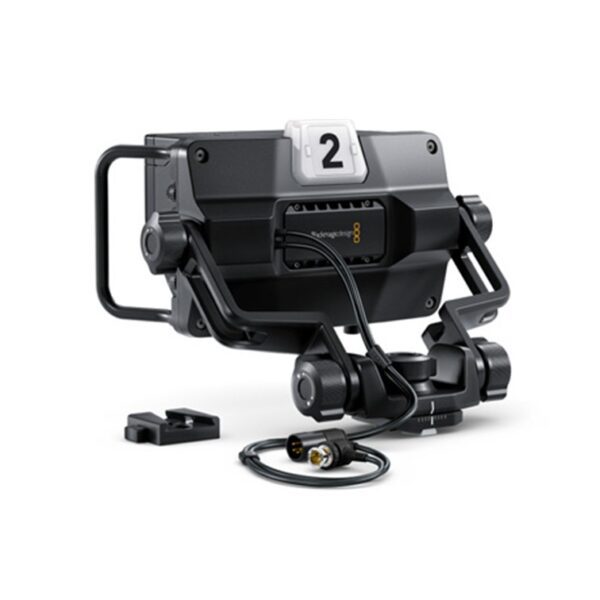

Blackmagic URSA Studio Viewfinder G2

When you’re working live in the studio or at large-scale events such as stadium productions, the Blackmagic URSA Studio Viewfinder G2 gives you professional monitoring and ergonomic control for your URSA Mini camera.

The bright 7-inch high-brightness display (2000 nits) includes a detachable sunshade, built-in grab handles, and an articulated pivot mount so you can position the viewfinder independently from the camera with complete flexibility.

Large rotary dials and customizable function buttons allow fast, on-the-fly adjustments without taking your eyes off the action. Setup is quick using the included V-Lock plate, and the unit connects directly to the URSA Mini’s SDI monitor and 12V power output — no extra cables or power supplies required.

---

Key Features

• 7” high-brightness 2000-nit monitor
• Detachable sunshade for outdoor use
• Articulated pivot mount for flexible positioning
• Large control dials and customizable buttons
• Built-in grab handles
• Direct SDI and power connection from URSA Mini
• Quick-release V-Lock mounting system
• Large LED tally display with camera numbering

Specification

• SDI Video Input: 1 x BNC
• SDI Rates: 1.5G, 3G

• Screen: 7″ TFT LCD
• Resolution: 1920 x 1200
• Brightness: 2000 nits

• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709

• HD Format Support:
720p50 / 59.94 / 60
1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i50 / 59.94 / 60

• SDI Compliance: SMPTE 259M, 292M, 296M, 425M, 2084

• Controls: Dials, knobs, and customizable function buttons

• Mounting: Quick-release V-Lock bracket

• Tally: Large LED tally with customizable camera numbers

• Computer Interface: USB-C (setup & firmware via Blackmagic Camera Setup)

• Power Input: 12V via 4-pin XLR from URSA Mini power output

• Operating Temperature: 0°–40°C (32°–104°F)
• Storage Temperature: -20°–60°C (-4°–140°F)
• Humidity: 0–90% non-condensing
