Blackmagic Video Assist 7” 12G HDR

Description

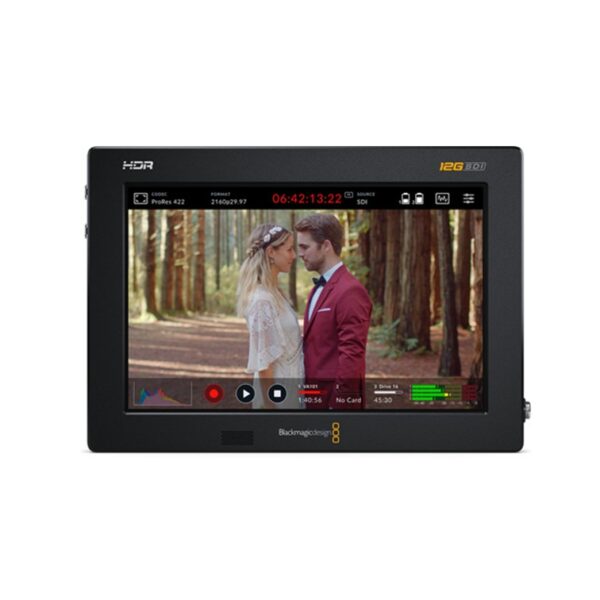

Blackmagic Video Assist 7” 12G HDR

The Blackmagic Video Assist 7” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera across all HD, Ultra HD, 2K and 4K DCI formats. Its ultra-bright 2500-nit 7-inch HDR display supports 3D LUTs and includes professional scopes, powerful focus assist, and exposure tools to help you achieve accurate framing, focus, and exposure on set.

Dual built-in UHS-II SD card recorders allow you to record directly from any camera in 10-bit 4:2:2 Apple ProRes or DNx formats, so footage is ready for immediate editing without transcoding. For higher-end workflows, it also supports Blackmagic RAW recording from compatible cameras.

Two balanced mini XLR inputs with 48V phantom power deliver clean, professional audio with a low noise floor of -128dBV. Combined with 12G-SDI and HDMI 2.0a connectivity, this makes Video Assist 7” 12G HDR ideal for filmmakers, broadcast crews, live production teams, and content creators who need reliable monitoring and recording in one portable device.

---

Key Features

• 7″ 2500-nit HDR touchscreen monitor
• Supports 3D LUTs for color accuracy
• Built-in professional scopes and focus tools
• Dual UHS-II SD recorders for ProRes & DNx
• Records Blackmagic RAW from supported cameras
• 12G-SDI + HDMI 2.0a in/out
• Two mini XLR inputs with 48V phantom power
• USB-C recording, webcam out, and control

Specification

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G

• HDMI 2.0a Inputs: 1
• HDMI 2.0a Outputs: 1

• Analog Audio Inputs: 2 x balanced mini XLR with phantom power
• Analog Audio Outputs: 1 x 3.5 mm headphone jack
• Built-in Speaker: Mono

• Screen Dimensions: 7 inch 1920 x 1200
• Screen Brightness: 2500 nits
• Screen Color: P3 wide color gamut

• SDI Audio Inputs: 16 channels embedded via 12G-SDI
• SDI Audio Outputs: 16 channels embedded via 12G-SDI
• HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
• HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a

• Remote Control: 1 x 2.5mm LANC (Record Start/Stop)

• SD Interface: Dual UHS-II SD slots
• Storage Type: SDXC UHS-II, SDXC UHS-I, SDHC UHS-I (DS, HS, SDR12, SDR25, DDR50, SDR50, SDR104 supported)

• Computer Interface: 1 x USB-C 3.1 Gen 1 (external drive recording, webcam out, setup, updates, Video Assist Utility control)

• SDI Video Standards: 525i59.94 NTSC; 625i50 PAL
• HD Video Standards: 720p50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30; 1080i50/59.94/60
• 2K Video Standards: 2K DCI formats up to 30p + PsF variants
• Ultra HD Standards: 2160p23.98/24/25/29.97/30/50/59.94/60
• 4K DCI Standards: 4Kp23.98/24/25/29.97/30

• SDI Compliance: SMPTE 259M, 292M, 296M, 425M, 2084
• SDI Metadata: HD RP188
• Audio Sampling: 48 kHz, 24-bit
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020
• HDR Support: HDR10, Hybrid Log Gamma

• SDI RAW: Blackmagic RAW supported

• HDMI Copy Protection: Cannot capture from copy-protected HDMI sources

• Media: 2 x UHS-II SD + USB-C external drive recording
• Supported Codecs: Blackmagic RAW (3:1, 5:1, 8:1, 12:1, Q0, Q5); Apple ProRes 422 HQ, 422, 422 LT, 422 Proxy; DNxHR HQX, SQ, LB (MOV & MXF)

• Recorder Control: Integrated capacitive touchscreen with on-screen controls
• External Control: LANC, SDI and HDMI start/stop + timecode run

• Scopes: Waveform, RGB Parade, Vector, RGB Histogram (PiP or overlay with opacity control)

• Operating Systems: macOS Ventura 13+, Sonoma 14+; Windows 11

• Power: External 12V power supply; compatible with Sony NP-F batteries (not included)

• Operating Temperature: 0° to 40° C
• Storage Temperature: -20° to 45° C
• Relative Humidity: 0% to 90% non-condensing
