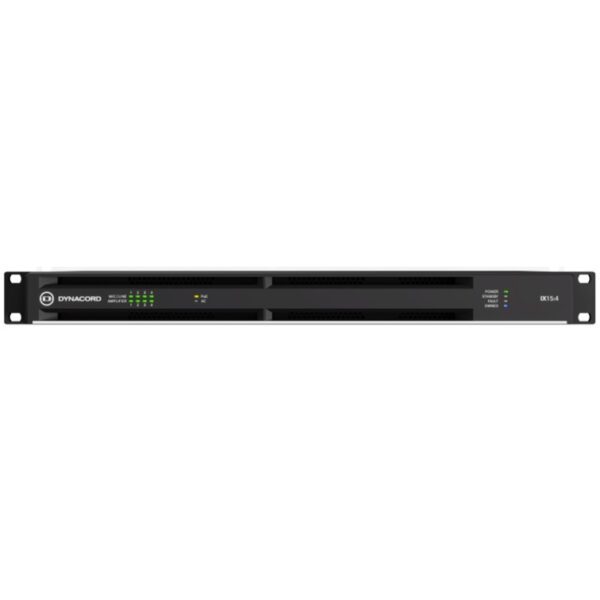

Dynacord IX15:4 4-Channel Power Amplifier with DSP (1.5kW)
$4,633.00
- 4-channel networked DSP amplifier delivering 1.5 kW total output power
- Supports both low-impedance and 70/100 V distributed audio systems
- Integrated 96 kHz DSP with 12×12 matrix mixer and FIR processing
- Dante networking with 8×8 audio channels and PoE ghostPOWER backup
- ecoRAIL technology for energy-efficient operation
- Description
Description
The Dynacord IX15:4 is a professional 4-channel networked DSP power amplifier delivering 1.5 kW of total output power, engineered for modern installed sound systems requiring reliability, flexibility and intelligent control. Supporting both high-impedance (70/100 V) distributed audio systems and low-impedance speaker configurations, the IX15:4 is ideal for sports venues, houses of worship, hospitality environments, live performance spaces and commercial installations.
Powered by Dynacord’s advanced powerTANK technology, the amplifier dynamically allocates available power across channels to maximize system efficiency while maintaining consistent performance. The IX15:4 integrates seamlessly into networked audio infrastructures with eight Dante inputs and outputs, alongside mic/line inputs that can function as Dante break-in points for additional system flexibility.
The onboard 96 kHz DSP engine features a comprehensive 12 × 12 matrix mixer with equalization, dynamics processing, Dynacord FX and FIR filtering capabilities. An integrated MXE-style TaskEngine enables automation, scheduling, logic control and third-party integration, allowing the amplifier to function as a centralized processing and control platform for complex audio systems.
Dynacord’s ecoRAIL technology significantly reduces power consumption and operational costs without compromising output performance. Additionally, ghostPOWER via PoE keeps the DSP, Dante network and mic/line inputs active even when mains power is interrupted, ensuring system monitoring and readiness at all times.
Fully integrated with Dynacord’s SONICUE Sound System Software, the IX15:4 can operate as a SONICUE control server and supports remote management via wall panels, touch controllers and mobile devices. Combining advanced DSP processing, networked audio capabilities and efficient power delivery, the IX15:4 provides a dependable solution for distributed sound systems requiring both performance and intelligent system control.
Specification
• Amplifier:
Channels: 4
Total Rated Output Power: 1,500 W
Power per Channel (All Channels Driven): 375 W
Maximum per Channel: up to 1,000 W
Bridge Mode: up to 750 W
Hi-Z Operation: 70 V / 100 V direct drive
Max Output Voltage: 145 Vpk per channel
Max Output Current: 33 Apk per channel
• Performance:
Frequency Response: 20 Hz – 20 kHz (±1 dB)
THD+N: < 0.1%
Crosstalk: < -80 dB
Sampling Rate: 96 kHz internal (Dante 48/96 kHz switchable)
Latency (analog in to speaker out): 0.77 ms
• DSP & Audio Processing:
Matrix Mixer: 12 × 12
Processing: EQ, dynamics, Dynacord FX, FIR-Drive
TaskEngine: Automation, scheduling, system logic
Pilot-tone detection on all inputs
• Inputs:
Mic/Line Inputs: 4 usable as Dante break-in points
Gain Range: 0 – 60 dB
Maximum Input Level: +18 dBu
Phantom Power: +48 V, switchable per input
Input Impedance: > 10 kΩ
• Network & Connectivity:
Dante Audio: 8 × 8 channels
Network Ports: 2 × RJ45 (PRIMARY/SECONDARY)
Redundancy Modes: Glitch-free, RSTP
Backup Power (ghostPOWER): PoE on primary port
Speaker Outputs: Euroblock (4-channel)
Mic/Line Inputs Connector: Euroblock
Control Port: 8-pin Euroblock
Mains Input: IEC C14
• Power & Efficiency:
Power Requirements: 100–240 V AC, 50/60 Hz
Rated Consumption (1/8 power): 300 W
Eco Mode: 25 W
Standby Mode: < 15 W
Technology: ecoRAIL energy optimization
• Protection & Cooling:
Protections: Thermal, DC, HF, short circuit, back-EMF, peak current, mains over/under voltage
Cooling: Front-to-rear temperature-controlled fan
• Physical:
Dimensions: 483 × 44.1 × 447 mm (19″ rack mount, 1U)
Weight: 7.45 kg
Shipping Weight: 9.3 kg
