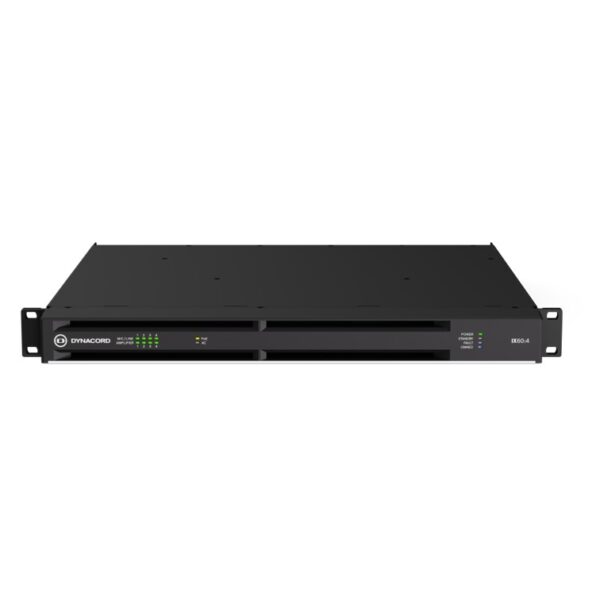

Dynacord IX60:4 4-Channel Power Amplifier with DSP (6kW)
$8,108.00
- 4-channel networked DSP amplifier delivering up to 6 kW total output power
- Supports both low-impedance and 70/100 V distributed audio systems
- Integrated 96 kHz DSP with 12×12 matrix mixer and FIR processing
- Dante networking with 8×8 audio channels and PoE ghostPOWER backup
- ecoRAIL technology for high efficiency and reduced operating costs
- Description
Description
The Dynacord IX60:4 is a powerful 4-channel networked DSP power amplifier delivering up to 6 kW of total output power, engineered for high-performance professional audio installations. Designed to drive both high-impedance (70/100 V) and low-impedance loads, it offers exceptional flexibility for applications such as sports venues, houses of worship, performance spaces, and large commercial facilities.
Featuring Dynacord’s advanced powerTANK technology, the IX60:4 intelligently distributes available power across channels to match system demands, maximizing efficiency and output performance. The amplifier includes eight Dante inputs and outputs along with mic/line inputs that can serve as Dante break-in points, making it ideal for modern networked audio infrastructures.
The onboard 96 kHz DSP engine provides a fully featured 12 × 12 matrix mixer with EQ, dynamics processing, FIR filtering and Dynacord FX. The integrated MXE-style TaskEngine enables advanced automation, scheduling, logic control and seamless integration with third-party systems, allowing the amplifier to act as a central control hub within complex installations.
Dynacord’s ecoRAIL technology optimizes energy efficiency to reduce operating costs without compromising performance. Additionally, ghostPOWER via PoE keeps the DSP, Dante networking and mic/line inputs operational even when mains power is unavailable, ensuring continuous monitoring and system control.
Fully compatible with Dynacord’s SONICUE Sound System Software, the IX60:4 can function as a SONICUE control server and integrates with wall panels, touch controllers and mobile devices for remote management. With its combination of high output power, advanced DSP processing and network capabilities, the IX60:4 is an ideal solution for large-scale professional audio systems.
Specification
• Amplifier:
Channels: 4
Total Rated Output Power: 6,000 W
Power per Channel (4 Ω): up to 1,500 W (all channels driven)
Power per Channel (8 Ω): up to 1,200 W (all channels driven)
Maximum per Channel: up to 1,800 W
Hi-Z Operation: 70 V / 100 V direct drive
Max Output Voltage: 145 Vpk
Max Output Current: 33 Apk
• Performance:
Frequency Response: 20 Hz – 20 kHz (±1 dB)
THD+N: < 0.1%
Crosstalk: < -80 dB
Sampling Rate: 96 kHz internal (Dante 48/96 kHz switchable)
Latency (analog in to speaker out): 0.77 ms
• DSP & Audio Processing:
Matrix Mixer: 12 × 12
Processing: EQ, dynamics, Dynacord FX, FIR-Drive
TaskEngine: Automation, scheduling, system logic
Pilot-tone detection on all inputs
• Inputs:
Mic/Line Inputs: 4 usable as Dante break-in points
Gain Range: 0 – 60 dB
Maximum Input Level: +18 dBu
Phantom Power: +48 V, switchable per input
Input Impedance: > 10 kΩ
• Network & Connectivity:
Dante Audio: 8 × 8 channels
Network Ports: 2 × RJ45 (PRIMARY/SECONDARY)
Redundancy Modes: Glitch-free, RSTP
Backup Power (ghostPOWER): PoE on primary port
Speaker Outputs: 4-channel Euroblock
Mic/Line Inputs Connector: Euroblock
Control Port: 8-pin Euroblock
Mains Input: IEC C14
• Power & Efficiency:
Power Requirements: 100–240 V AC, 50/60 Hz
Rated Consumption (1/8 power): 1,050 W
Eco Mode: 33 W
Standby Mode: < 15 W
Technology: ecoRAIL energy optimization
• Protection & Cooling:
Protections: Thermal, DC, HF, short circuit, back-EMF, peak current, mains over/under voltage
Cooling: Front-to-rear temperature-controlled fan
• Physical:
Dimensions: 483 × 44.1 × 447 mm (19″ rack mount, 1U)
Weight: 8.6 kg
Shipping Weight: 10.5 kg
