Electro-Voice EVOLVE 70 Powered Column Array System - Image 1

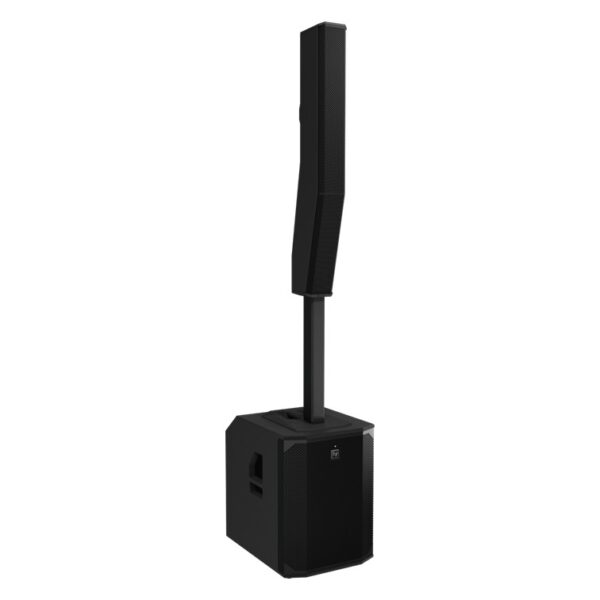

Electro-Voice EVOLVE 70 Powered Column Array System

Electro-Voice EVOLVE 90 Powered Column Array System
Electro-Voice LRC-2100 Passive Column Loudspeaker

$4,279.00

  • Powerful column array system designed for large events and venues.
  • Wide 120° coverage ensures consistent sound across the audience.
  • 15-inch subwoofer delivers deep, punchy bass performance.
  • Integrated DSP with FIR processing for precise audio reproduction.
  • Portable design with fast assembly for efficient deployment.
Categories: , , Brand:

Description

Electro-Voice EVOLVE 70 is a powerful yet highly portable powered column array system designed for professional users who need exceptional sound coverage for larger events. Combining impressive output, wide dispersion, and quick setup, the EVOLVE 70 is ideal for DJs, live bands, event organizers, and venues seeking premium performance in a compact format.

The system delivers up to 133 dB maximum SPL using a column array of eight 4.7-inch neodymium drivers paired with a high-performance 15-inch subwoofer. Proprietary waveguide technology ensures wide 120° horizontal coverage with controlled 25° vertical dispersion, providing clear, consistent sound across the audience area.

Advanced FIR processing maintains linear frequency response and precise phase alignment, while the efficient laminar-flow vent design and 3-inch voice coil enable powerful low-frequency performance down to 35 Hz. The result is a balanced combination of high output, deep bass, and portability.

Flexible connectivity options include XLR/TRS combo microphone inputs, line-level XLR and RCA inputs, digital AES/EBU, Bluetooth® stereo streaming, and QuickSmart Link integration. The EVOLVE 70 can also be controlled remotely using the QuickSmart Mobile app, enabling monitoring and configuration alongside other compatible Electro-Voice portable systems.

Designed for rapid deployment, the EVOLVE 3-2-1 assembly system allows the three components to connect in seconds. Lightweight materials, ergonomic design, and included carrying accessories ensure easy transport without sacrificing professional-grade performance. Available in black or white, the EVOLVE 70 combines powerful sound with a sleek, modern appearance.

Key Features

  • High-output powered column array system for professional events
  • Eight-driver column delivers wide, consistent 120° sound coverage
  • Powerful 15-inch subwoofer provides deep, punchy bass
  • 2000 W amplification with dedicated LF and HF channels
  • Advanced FIR processing for precise sound alignment
  • Multiple inputs including mic, line, digital, and Bluetooth®
  • Remote control via QuickSmart Mobile app
  • Rapid 3-2-1 assembly for quick setup and teardown
  • Portable design with professional aesthetics in black or white

Specification

• System:
Type : Powered Column Array System
Maximum SPL : 133 dB
Coverage : 120° × 25°

• Column Array:
Drivers : 8 × 4.7” neodymium drivers

• Subwoofer:
Driver : 1 × 15”
Voice Coil : 3”

• Amplification:
Amplifier Rating : 2000 W
LF Channel : 1000 W
HF Channel : 1000 W

• Frequency:
Frequency Response : 40 Hz – 18 kHz
Frequency Range : 35 Hz – 20 kHz

• Connectivity:
Inputs : 2 × XLR/TRS combo; 1 × stereo XLR/RCA
Digital I/O : AES/EBU
Wireless : Bluetooth® stereo
System Link : QuickSmart Link
Power Connector : PowerCON®

• Physical:
Total Weight : 35.5 kg (78.3 lb)
