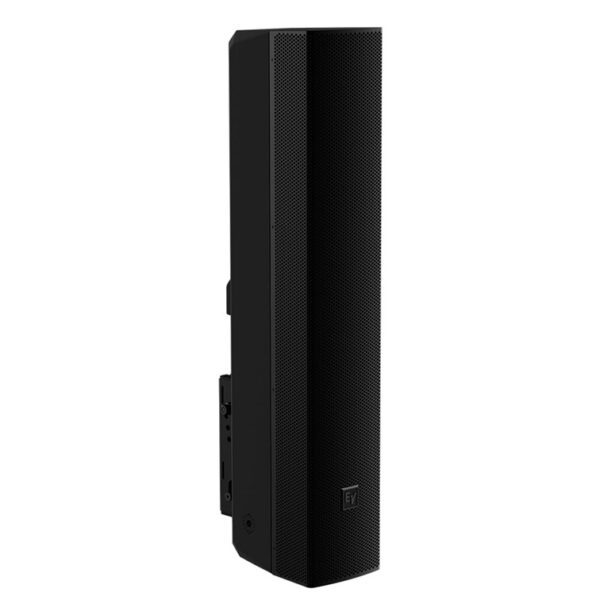

Electro-Voice LRC-1060 Passive Column Loudspeaker (60cm)
$910.00
- Compact installation column speaker with wide horizontal coverage.
- Supports both low-impedance and 70V/100V distributed systems.
- Weatherized design with EN54 certification for indoor and outdoor use.
- Automatic Saturation Compensation preserves sound quality across speaker networks.
- Includes SwifTilt bracket for precise aiming and flexible mounting.
- Description
Description
Electro-Voice LRC-1060 Passive Column Loudspeaker (60 cm) is a compact line radiator column designed for professional installation applications where clear speech reproduction, controlled coverage, and discreet aesthetics are required. Its slim form factor allows seamless integration into architectural environments while delivering reliable performance for both foreground and background sound.
The LRC-1060 features six 2.5-inch full-range drivers supported by two passive radiators, producing focused sound with extended low-frequency performance. The system provides a symmetrical 20° vertical coverage and wide 130° horizontal dispersion, ensuring even sound distribution across listening areas.
Equipped with a pre-installed transformer, the loudspeaker supports both low-impedance (8 Ω) and 70 V / 100 V distributed audio systems. Electro-Voice’s patented Automatic Saturation Compensation (ASC) technology preserves bass response and protects electronics from improper loading when multiple speakers are connected.
Designed for versatile installation, the LRC-1060 includes the SwifTilt multi-angle pan-tilt mounting bracket, enabling precise aiming while keeping the speaker close to the wall. Additional suspension points allow alternative rigging options. The weatherized construction with IP55 rating and EN54-24 certification makes it suitable for both indoor and outdoor applications.
Optimized for use with recommended high-pass filtering and compatible DSP processors, the LRC-1060 delivers dependable performance in venues such as transportation hubs, retail environments, houses of worship, corporate facilities, and public spaces.
Key Features
- Compact passive column loudspeaker for installation applications
- Wide 130° horizontal coverage with focused 20° vertical dispersion
- Six full-range drivers with passive radiators for extended bass response
- Integrated transformer for 70V/100V distributed audio systems
- Automatic Saturation Compensation protects system performance
- Weatherized IP55 design with EN54-24 certification
- Includes SwifTilt multi-angle pan-tilt mounting bracket
- Slim profile for unobtrusive architectural integration
Specification
Frequency Range (-10 dB) : 70 Hz – 15,000 Hz
Maximum SPL : 122 dB
Axial Sensitivity : 90 dB SPL 1W/1m
Recommended High Pass : ≥ 70 Hz Butterworth, 24 dB/oct
• Coverage:
Coverage Angle (HxV) : 130° × 20°
• Power & Impedance:
Power Handling (Continuous) : 100 W
Power Handling (Program) : 200 W
Peak Input Voltage (Lo-Z) : 80 V
Nominal Impedance (Lo-Z) : 8 Ω
• Transformer (70V/100V):
70 V Taps : 60 W; 30 W; 15 W; 8 W; 4 W
100 V Taps : 60 W; 30 W; 15 W; 8 W
• Transducers:
Active Drivers : (6) 2.5 in full-range
Passive Radiators : (2) 2.5 in
• Connections & Mounting:
Connector Type : 4-pin Euroblock input + pass through
Wire Size : 12 AWG (maximum)
Mounting : SwifTilt Multi-angle Tilt + Pan Bracket
Maximum Horizontal Pan Angle : ± 80° at all down-tilt angles
Vertical Down-Tilt Angles : 0°; 2.5°; 5°; 7.5°; 10°; 15°; 20°; 25°
Suspension Points : (2) M8
• Environmental & Finish:
IP Rating : IP55c (full outdoor exposure)
Certification : EN54-24
Colour : RAL 9004 Signal black / RAL 9003 Signal white
• Physical:
Dimensions (H×W×D) : 580 mm × 105 mm × 144 mm (22.83 in × 4.13 in × 5.67 in)
Weight : 4.4 kg (9.7 lb)
Shipping Weight : 6.5 kg (14.33 lb)
