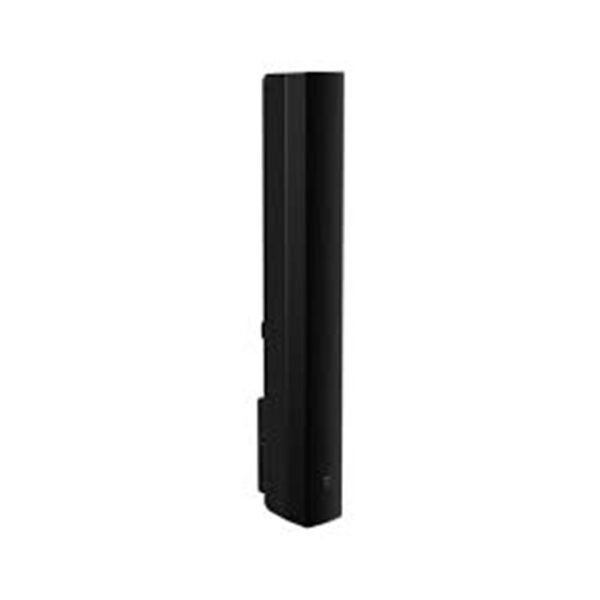

Electro-Voice LRC-2100 Passive Column Loudspeaker
$2,300.00
- Installation-ready passive column loudspeaker with selectable narrow or wide vertical coverage.
- Delivers focused intelligibility with a built-in 7.5° acoustic downward bias.
- Weatherized IP55 design supports reliable indoor and outdoor installations.
- Includes SwifTilt bracket for flexible pan and tilt mounting close to the wall.
- Powerful driver array provides high output with controlled dispersion for venues and public spaces.
- Description
- Additional information
Description
Electro-Voice LRC-2100 is a passive line radiator column loudspeaker engineered specifically for professional installation applications. Designed to be simple, practical, and easy to deploy, the LRC-2100 combines a sleek, neutral industrial design with powerful, controlled coverage—making it suitable as a main, support, foreground, or background speaker in a wide range of venues.
The LRC-2100 features a high-performance driver complement of (2) 6.5-inch bass drivers and (12) 2.5-inch mid-high drivers. Proprietary PaSS phase plugs help create a narrow vertical pattern and strong low-frequency extension. Users can select between narrow or wide vertical coverage (25° or 45°), with a built-in 7.5° downward bias to focus energy toward listeners and improve intelligibility in real-world installs.
Built for indoor and outdoor use, the LRC-2100 is weatherized for full exposure with an IP55 rating. Installation is streamlined with the included SwifTilt pan-tilt mounting bracket, designed to support most mounting scenarios while positioning the column as close to the mounting surface as possible. Rear insert points and integrated suspension points provide additional rigging flexibility.
For optimal performance and protection, the LRC-2100 is intended for use with the recommended high-pass filter and can be paired with Dynacord DSP matrix processors and amplifiers that provide dedicated presets. The loudspeaker is supported by common system design tools including EASE and related software platforms, enabling accurate planning and deployment for professional integrators.
Key Features
- Passive line radiator column loudspeaker designed for installation applications
- Selectable vertical coverage patterns: 25° (narrow) or 45° (wide)
- 7.5° downward acoustic bias focuses energy toward listeners
- Driver array: (2) 6.5" bass + (12) 2.5" mid-high with PaSS phase plugs
- Weatherized design with IP55 rating for indoor/outdoor use
- Included SwifTilt multi-angle tilt + pan bracket for flexible mounting
- Rear insert points and multiple suspension points for rigging options
- Optimized performance with recommended high-pass filtering and DSP presets
Specification
Frequency Range (-10 dB) : 45 – 16,000 Hz
Maximum SPL : 128 dB (narrow); 126 dB (wide)
Axial Sensitivity : 91.5 dB SPL 1W/1m (narrow); 90 dB SPL 1W/1m (wide)
Recommended High Pass : 50 Hz Butterworth 24 dB/oct
Acoustic Down-Tilt (relative to horizontal) : -7.5°
• Coverage:
Coverage Angle (HxV) : 180° × 25° (narrow); 180° × 45° (wide)
• Power & Impedance:
Power Handling (Continuous) : 300 W
Power Handling (Program) : 600 W
Peak Input Voltage : 130 V
Nominal Impedance : 8 Ω
Minimum Impedance : 6.4 Ω at 280 Hz
• Transducers:
Bass Drivers : (2) 6.5 in
Mid-High Drivers : (12) 2.5 in
• Connections & Mounting:
Connector Type : 4-pin Euroblock input + pass through (max 10 AWG)
Mounting : SwifTilt Multi-angle Tilt + Pan Bracket
Maximum Horizontal Pan Angle : ± 80° at all down-tilt angles
Vertical Down-Tilt Angles : 0°; 2.5°; 5°; 7.5°; 10°; 15°; 20°; 25°
Suspension Points : (6) M8 × 20 mm
• Environmental & Finish:
IP Rating : IP55
Colour : RAL 9004 Signal black / RAL 9003 Signal white
• Physical:
Dimensions (H×W×D) : 950 mm × 185 mm × 250 mm (37.40 in × 7.28 in × 9.84 in)
Weight : 15 kg (33.1 lb)
Shipping Weight : 21.4 kg (35.27 lb)
Additional information
| Colour | Black, White |
|---|
