Genelec 4020C Installation Active Loudspeaker
$839.00
- Compact active installation speaker for commercial spaces
- DCW™ waveguide for controlled dispersion
- Built-in Class D amps with active crossovers
- Room response compensation switches
- Reflex port enclosure with versatile mounting
- Description
Description

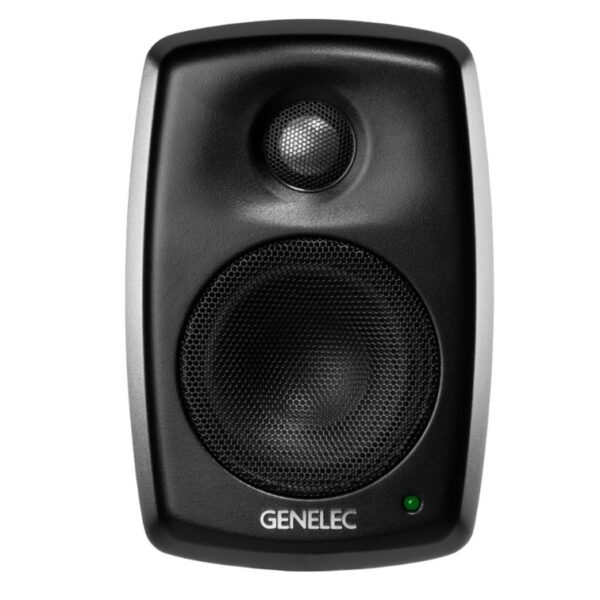

Genelec 4020C — Installation Active Loudspeaker
When space is at a premium, the Genelec 4020C delivers impressive performance in a compact, installation-friendly design. Built for demanding commercial environments, it provides Genelec’s signature precision and clarity with controlled directivity for clean, intelligible audio at any playback level.
Housed in a durable die-cast aluminium enclosure with a reflex port design, the 4020C reduces unwanted reflections and supports deeper low-frequency performance. Room response compensation switches on the rear panel allow the speaker to adapt easily to challenging acoustic spaces, ensuring consistent and non-fatiguing sound.
As an active loudspeaker, the 4020C integrates Class D amplifiers, active crossovers, and protection circuitry inside the cabinet — eliminating the need for external power amplifiers while improving reliability for 24/7 operation. With Genelec’s DCW™ and MDE™ technologies plus versatile mounting options, the 4020C can be installed quickly and confidently in almost any location.
Key Features
• Compact active installation loudspeaker for commercial spaces
• Directivity Control Waveguide (DCW™) for controlled dispersion
• Minimum Diffraction Enclosure (MDE™) for reduced reflections
• Reflex port design for improved low-frequency extension
• Rear panel room response compensation switches
• Built-in Class D amplifiers with active crossovers
• Protection circuitry and ISS™ energy-saving technology
• Versatile mounting options available
| • Frequency Response: 62 Hz – 20 kHz (±2.5 dB) • Low cutoff (-6 dB): 56 Hz • High cutoff (-6 dB): 25 kHz • Peak SPL: ≥107 dB • Short-term max SPL: ≥100 dB • Long-term max SPL: ≥93 dB • Self-generated noise: ≤5 dB (A-weighted, 1 m) • Crossover: 3000 Hz • Woofer: 105 mm cone (magnetically shielded) • Tweeter: 19 mm metal dome (magnetically shielded) • Amplifier (bass): 50 W Class D • Amplifier (treble): 50 W Class D • Mains voltage: 100–240 VAC 50/60 Hz • Power consumption (ISS active): ≤0.5 W • Power consumption (idle): ≤3 W • Power consumption (full output): 60 W • Input: 10 kOhm balanced connector • Enclosure material: Die-cast aluminium • Enclosure type: Reflex port • Height: 226 mm • Width: 151 mm<b |
