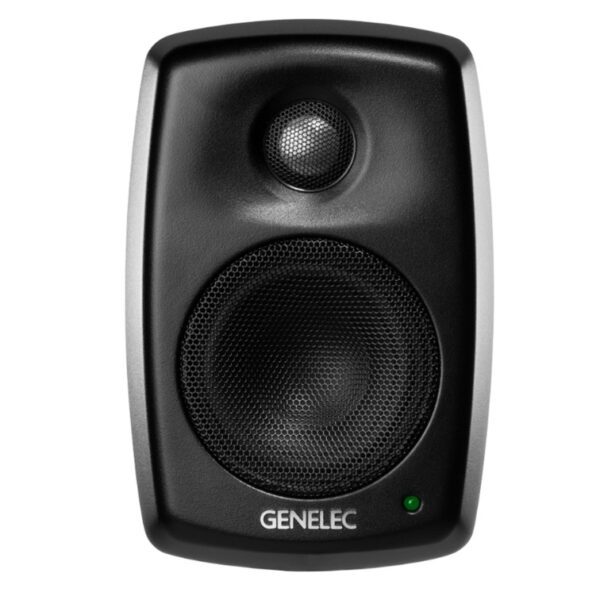

Genelec 4420A Smart IP Installation Speaker (PoE / Audio-over-IP)
$1,569.00
- Smart IP installation speaker with PoE+/PoE
- Audio-over-IP compatible with Dante & AES67
- Compact design with uniform room coverage
- Smart IP Manager software for setup & monitoring
- Built-in Class D amps with reflex port enclosure
- Description
Description
Genelec 4420A — Smart IP Installation Speaker (PoE / Audio-over-IP)
The Genelec 4420A brings Smart IP power and flexibility into an ultra-compact installation speaker, delivering clarity, intelligibility, and uniform coverage even in tight spaces. Designed for modern commercial installations, it combines class-leading Genelec sound with single-cable convenience via Power over Ethernet (PoE+/PoE).
With Audio-over-IP (AoIP) support, the 4420A is compatible with Dante and open streaming standards such as AES67. It delivers strong output in a small footprint, reaching up to 100 dB short-term SPL with low frequency extension down to 55 Hz, making it ideal for compact zones that still demand premium audio performance.
As part of the Smart IP family, the 4420A integrates with Genelec Smart IP Manager software for large-scale configuration and management of rooms, zones, speakers, and channels. Installers benefit from device discovery, room EQ tools, system organisation, and status monitoring. For daily operation, a public API command set supports integration into automation and control systems.
Key Features
• Smart IP active installation speaker with PoE+/PoE power
• Audio-over-IP (AoIP) with Dante & AES67 compatibility
• Compact enclosure with uniform room coverage
• Smart IP Manager software support (discovery, EQ, monitoring)
• Public API command set for automation integration
• Directivity Control Waveguide (DCW™) & MDE™ design
• Built-in Class D amplification with active crossovers
• Reflex port enclosure with versatile mounting options
|
• Frequency Response: 62 Hz – 20 kHz (±1.5 dB) • Low cutoff (-6 dB): 55 Hz • High cutoff (-6 dB): 39 kHz • Peak SPL: ≥104 dB (PoE+, 1 m, per unit) • Short-term max SPL: ≥100 dB • Long-term max SPL: ≥93 dB • Self-generated noise: ≤5 dB (A-weighted, 1 m) • Latency (analog input): 2.2 ms • Crossover: 3000 Hz • Woofer: 105 mm cone driver • Tweeter: 19 mm metal dome • Amplifier (bass): 50 W Class D • Amplifier (treble): 50 W Class D • Mains voltage: PoE+/PoE • Power consumption (ISS active): ≤4 W • Power consumption (idle): ≤5 W • Power consumption (full output): 25.5 W • Input (analog): 10 kOhm balanced connector • Input (network): Ethernet (PoE & Audio over IP) • Enclosure material: Die-cast aluminium • Enclosure type: Reflex port • Height: 226 mm • Width: 151 mm • Depth: Related products |
