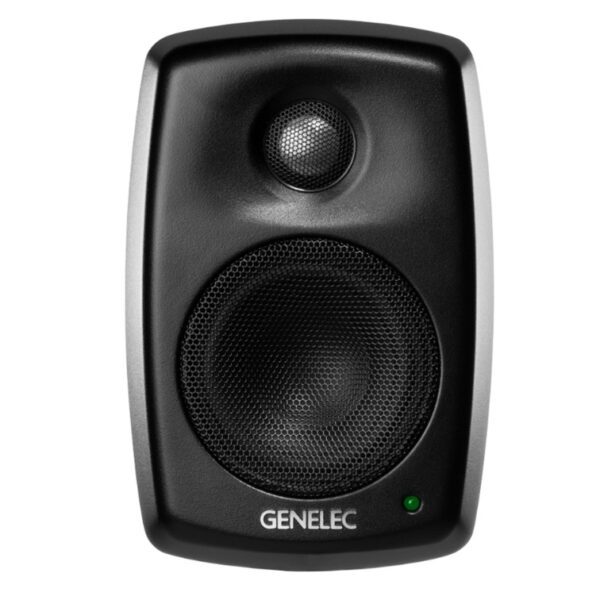

Genelec 4430A Smart IP Installation Speaker (PoE / Audio-over-IP)
$1,779.00
- Smart IP installation speaker with PoE+/PoE
- Audio-over-IP compatible with Dante & AES67
- Compact high-performance design
- Smart IP Manager for system control
- Built-in Class D amplifiers with reflex port
- Description
Description
Genelec 4430A — Smart IP Installation Speaker (PoE / Audio-over-IP)
The Genelec 4430A delivers exceptional sound over IP, providing power, audio, and loudspeaker management through a single standard CAT cable. Designed for professional commercial installations, it offers unrivalled flexibility, cost-effectiveness, and simplified deployment without compromising on acoustic performance.
Built in Finland using certified sustainable methods, the 4430A features a die-cast aluminium enclosure with a reflex port design for improved low-frequency extension and reduced unwanted reflections. Combined with Genelec’s Directivity Control Waveguide (DCW™) and Minimum Diffraction Enclosure (MDE™), it ensures uniform coverage and highly intelligible sound in challenging acoustic environments.
As part of the Smart IP family, the 4430A integrates seamlessly with Genelec Smart IP Manager software for system configuration, room EQ, device discovery, and monitoring. A public API also allows easy integration into building automation and control systems, making it ideal for modern networked AV installations.
Key Features
• Smart IP active installation loudspeaker with PoE+/PoE power
• Audio-over-IP (AoIP) compatible with Dante & AES67
• Compact yet powerful design for commercial spaces
• Smart IP Manager support (discovery, EQ, monitoring)
• Public API for automation integration
• DCW™ waveguide and MDE™ enclosure design
• Built-in Class D amplification with active crossovers
• Reflex port enclosure with versatile mounting options
|
• Frequency Response: 58 Hz – 20 kHz (±1.5 dB) • Low cutoff (-6 dB): 45 Hz • High cutoff (-6 dB): 39 kHz • Peak SPL: ≥107 dB (PoE+, 1 m, per unit) • Short-term max SPL: ≥104 dB • Long-term max SPL: ≥96 dB • Self-generated noise: ≤5 dB (A-weighted, 1 m) • Latency (analog input): 2.3 ms • Crossover: 2900 Hz • Woofer: 130 mm cone driver • Tweeter: 19 mm metal dome • Amplifier (bass): 50 W Class D • Amplifier (treble): 50 W Class D • Mains voltage: PoE+/PoE • Power consumption (ISS active): ≤4 W • Power consumption (idle): ≤5 W • Power consumption (full output): 25.5 W • Input (analog): 10 kOhm balanced connector • Input (network): Ethernet (PoE & Audio over IP) • Enclosure material: Die-cast aluminium • Enclosure type: Reflex port • Height: 285 mm • Width: 189 mm • Depth: 178 mm • Weight: 5.1 kg |
