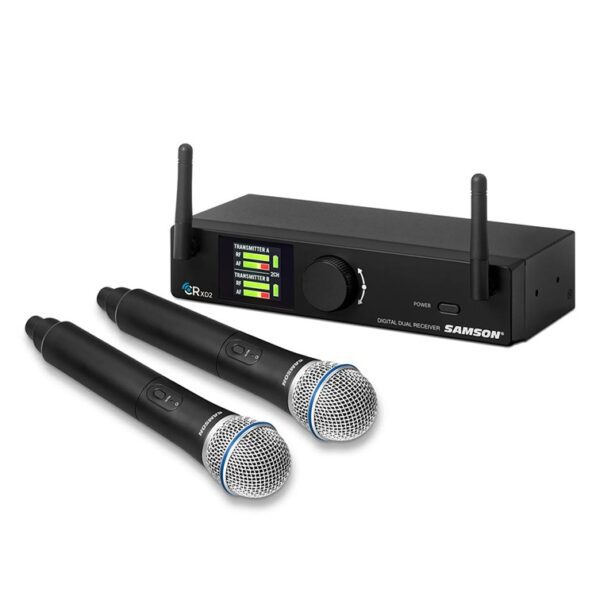

Samson Concert XD2 Two-Channel Digital Wireless Handheld System
$930.00
• Professional two-channel digital wireless handheld system for live performance and presentations.
• Operates in the license-free 1.9 GHz band to minimize interference.
• Includes two handheld transmitters with premium Q8 dynamic vocal capsules.
• 300 ft (100 m) operating range with ultra-low 7.7 ms latency.
• Half-rack receiver with individual XLR outputs and flexible routing options.
- Description
Description
The Samson Concert XD2 Two-Channel Digital Wireless Handheld System sets a new standard for vocal performance and multi-speaker presentations. Operating in the license-free 1.9 GHz frequency band, this advanced digital wireless system delivers exceptional sound clarity while avoiding interference commonly found in crowded 2.4 GHz and 5.8 GHz bands.
Powered by Samson’s Sheersound™ audio codec, the Concert XD2 offers ultra-low latency performance and superior audio quality. Its digital architecture provides a higher signal-to-noise ratio than traditional analog systems, preserving every vocal nuance — from subtle speech to powerful singing — with outstanding accuracy.
This dual-channel system includes two handheld transmitters equipped with premium Q8 dynamic vocal microphone capsules. Designed for reliability and performance, each transmitter runs for up to 8 hours on two AA batteries, making the system ideal for extended events and performances.
The half-rack CRXD2 receiver features a high-contrast color display with audio, RF and battery level indicators. Each channel includes a balanced XLR output, along with a 1/4″ TRS output configurable for dual-channel or mono routing. With simple wireless pairing and included rackmount kit, the Concert XD2 ensures fast setup and professional integration for live sound, houses of worship, education, theater and portable audio applications.
Key Features
• Two-channel digital wireless handheld system for professional vocal use
• Operates in the license-free 1.9 GHz frequency band
• Sheersound™ audio codec for ultra-low latency and superior audio quality
• Includes two handheld transmitters with Q8 dynamic vocal capsules
• Up to 8 hours of battery life per transmitter
• 300 ft (100 m) operating range (line-of-sight)
• Half-rack receiver with individual XLR outputs and mixed 1/4″ output
• Easy pairing setup with included rackmount kit
Specification
| • System Type: Two-Channel Digital Wireless Handheld System |
| • Working Range: 300′ (100 m) Line-of-Sight |
| • RF Frequency Range: US: 1921.536–1928.448 MHz / EU: 1881.792–1897.344 MHz / JP: 1895.616–1904.256 MHz |
| • Audio Sampling Rate: 48 kHz |
| • Audio Frequency Response: ±1 dB from 20 Hz – 21 kHz |
| • System Latency: 7.7 ms |
| • Transmitter Model: CHXD2 |
| • Microphone Element: Q8 Dynamic Capsule |
| • Audio THD: -74 dB (0.02%) |
| • RF Power: 20 dBm (FCC) / 23 dBm (RED) |
| • Power Requirement: 2 × AA Batteries (NiMH or Alkaline) |
| • Battery Life: Up to 8 Hours |
| • Transmitter Dimensions: 10.23” x 2.1” / 260 mm x 54 mm |
| • Transmitter Weight: 0.60 lb / 274 g |
| • Receiver Model: CRXD2 |
| • Audio Output Level (1/4″): +12 dBu |
| • Audio Output Level (XLR): +9 dBu |
| • Output Impedance (1/4″): 100 Ω |
| • Output Impedance (XLR): 317 Ω |
| • Receiver Dimensions: 7.79” x 3.38” x 1.69” / 198 mm x 86 mm x 43 mm |
| • Receiver Weight: 1.12 lb / 509.5 g |
