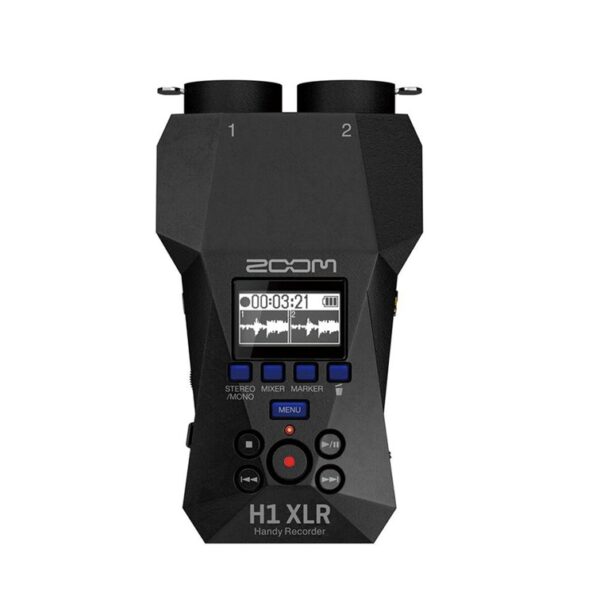

Zoom H1 2 Track XLR Portable Recorder

Zoom H5studio 4-Track Handheld Recorder
Zoom H2essential Multi-Mic Handy Recorder

$205.00

  • 2-track portable recorder with 32-bit float and dual A/D converters for clip-free recording
  • Two locking XLR/TRS combo inputs with per-input MIC/LINE level switches
  • Records up to 96kHz in WAV with BWF and iXML support
  • USB-C audio interface (2-in/2-out) with simultaneous SD recording
  • OLED waveform display, Voice Guidance, tripod mount, and AA/USB power options
Categories: , , Brand:

Description

The Zoom H1 XLR is a compact, creator-first 2-track portable recorder built for capturing clean audio anywhere — from video shoots and interviews to direct feeds from mixers and quick song ideas. With 32-bit float recording and dual A/D converters, it delivers clip-free results with no need to set input gain, making it ideal for fast-paced recording situations.

Designed for real-world production, the H1 XLR features two locking XLR/TRS combo inputs with individual MIC/LINE level select switches, plus a stereo 3.5mm mic/line input for flexible source connection. Monitoring and playback are simple with a 3.5mm phone/line output and dedicated volume control, while a built-in speaker provides quick reference playback and supports Voice Guidance accessibility.

An OLED display shows a real-time waveform for confidence while recording, and the built-in mixer lets you adjust each track’s input level. The H1 XLR also doubles as a USB-C audio interface for PC, Mac, iOS, and Android, and you can record to microSD while interfacing at the same time. Power it with 2x AA batteries or USB-C bus power for portable sessions.

Specification

• Product Type:
2-Track XLR Portable Recorder

• Recording Format:
WAV
44.1 / 48 / 96 kHz, 32-bit float
Stereo / Mono
BWF and iXML supported

• 32-Bit Float Recording:
Yes (Dual A/D Converters)
Clip-free recording, no gain setting required

• Inputs (Main):
2 x XLR/TRS combo jacks (locking)
(XLR: 2 HOT, TRS: TIP HOT)

• Input Level Control:
Hardware MIC/LINE input level select switch (each input)
Input gain adjustment unnecessary (dual A/D converter circuits)

• Input Impedance:
MIC: 2.7 kΩ or more
LINE: 1 kΩ or more

• Maximum Input Level:
MIC: +4 dBu
LINE: +24 dBu

• Phantom Power:
+48 V
Channel total 10 mA or less

• Equivalent Input Noise:
MIC: –122 dBu or less (IHF-A) @ 150Ω
LINE: –100 dBu or less (IHF-A) @ 600Ω

• Additional Input:
Stereo 3.5mm MIC/LINE IN (mini jack)
Input impedance: 2 kΩ
Plug-in power: 2.5 V

• Outputs:
3.5mm PHONE / LINE OUT (stereo mini jack)
Dedicated volume control

• Headphone/Line Output Specs:
Max output: 20 mW + 20 mW (32 Ω load)
Output impedance: 10 Ω or less

• Built-in Speaker:
20 mm × 30 mm elliptical dynamic speaker
Effective max output: 250 mW

• Display:
OLED 128 × 64
Real-time waveform display

• Storage Media:
microSDHC (4–32 GB)
microSDXC (64 GB–1 TB)

• USB:
USB Type-C
USB Audio Class 1.0
File transfer: USB 2.0 High Speed

• Audio Interface:
2 in / 2 out (Stereo)
Sampling frequencies: 44.1 / 48 kHz
Bit depths: 16-bit, 32-bit float
Record to SD while interfacing: Yes

• Accessibility:
Voice Guidance

• Mounting:
1/4″-20 tripod mount

• Power:
2 x AA batteries (Alkaline / Lithium / NiMH)
USB bus power supported
AC adapter: ZOOM AD-17 (DC 5 V / 1 A)

• Battery Life (Phantom OFF):
Alkaline: ~12 hours
NiMH (1900 mAh): ~11 hours
Lithium: ~19 hours

• Battery Life (Phantom ON):
Alkaline: ~4 hours
NiMH (1900 mAh): ~3 hours
Lithium: ~9 hours

• Power Consumption:
2.5 W maximum

• Dimensions (W × D × H):
62.1 mm × 107 mm × 39.3 mm

• Weight:
164 g (including batteries)
