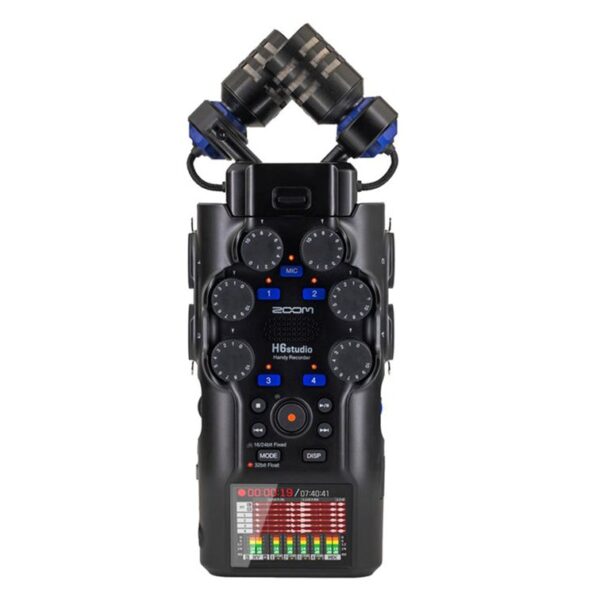

Zoom H6studio Handheld Recorder

Presonus Quantum ES 2 2-in/2-out Audio Interface
Zoom LiveTrak L-6 10-Channel Compact Digital Mixer

$580.00

  • 32-bit float + dual A/D converters for wide 132 dB dynamic range
  • Large-diaphragm 90° X/Y microphones for clean stereo capture
  • 4 x XLR/TRS combo inputs with +48V phantom power
  • Up to 6-track recording and WAV up to 192 kHz
  • 6-in / 2-out USB-C audio interface with Universal Control features
Categories: , , Brand:

Description

The Zoom H6studio is Zoom’s most advanced Handy Recorder to date, built for creators who need pro sound every time they press record. It combines large-diaphragm 90° X/Y microphones, four studio-grade preamps and 32-bit float recording with dedicated gain knobs for confident, high-quality capture in any environment.

Powered by F-Series technology, the H6studio delivers ultra-clean preamp performance with an exceptionally low noise floor (-127 dBu EIN). With dual A/D converters and 32-bit float, it provides a massive 132 dB dynamic range so you can capture everything from delicate ambience to loud sources without losing detail.

The onboard microphone capsule is stacked at a 90º angle to form a perfect X/Y pair, helping to reduce phase issues that can occur with other stereo mic arrangements. For maximum workflow flexibility, the H6studio lets you switch between 32-bit float and traditional 16/24-bit formats using a dedicated format switch. You get the convenience of clip-free 32-bit float, or the simplicity of 16/24-bit when you prefer minimal post-production.

Designed for production, podcasting and location work, the H6studio supports up to 6-track simultaneous recording in WAV up to 192 kHz, offers four XLR/TRS combo inputs with +48V phantom power, and functions as a 6-in / 2-out USB audio interface via USB-C. Helpful tools like low-cut filtering, mono mode, variable speed playback and onboard normalize/export make it easy to deliver clean audio fast.

Specification

• Recording:
WAV recording (mono/stereo)
Sample Rates: 44.1 / 48 / 96 / 192 kHz
Bit Depth: 16-bit / 24-bit / 32-bit float
BWF and iXML formats supported

• Simultaneous Tracks:
Maximum recording tracks: 8
Maximum playback tracks: 6

• Inputs:
Mic Capsule: 1
Mic/Line (mono): 4

• XY Microphone (XYH-5s):
90° XY stereo format
Pickup Pattern: Unidirectional
Sensitivity: –41 dB/Pa at 1 kHz
Max SPL: 140 dB SPL

• Mic/Line In (XYH-5s):
Connector: 1 stereo mini jack
Input Gain: −∞ to +60 dB
Input Impedance: 2 kΩ or more
Plug-in Power: 2.5 V

• Mic/Line (Mono) Inputs 1–4:
Connectors: 4 x XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input Gain: −∞ to +60 dB
Input Impedance: MIC 3 kΩ or more / LINE 3 kΩ or more
Max Input Level: MIC +4 dBu / LINE +24 dBu
Phantom Power: +48 V
Equivalent Input Noise: –127 dBu or less (IHF-A) at 150 Ω input

• Outputs:
Line Out: 1 (stereo mini jack), Max +1 dBu, Output impedance 110 Ω or less
Headphone: 1 (stereo mini jack), Max 20 mW + 20 mW (32 Ω load), Output impedance 10 Ω or less
Built-in Speaker: Mono 20 mm x 30 mm elliptical dynamic, 250 mW max

• USB:
USB Type-C (data transfer supported cable required)
Audio Interface: USB 2.0 High Speed
I/O Modes: 6 in / 2 out (Multi), 2 in / 2 out (Stereo)
Audio Interface Sample Rates: 44.1 / 48 / 96 kHz
Audio Interface + Onboard Recording: 44.1 / 48 kHz
Bit Depth (USB): 24-bit, 32-bit float

• Display:
2.00″ full-color LCD (320 x 240)

• Remote / Wireless:
Dedicated wireless adapter: ZOOM BTA-1

• Power:
4 x AA batteries (alkaline, lithium, NiMH rechargeable)
AC adapter: ZOOM AD-17 (DC 5 V / 1 A)
USB bus power supported
Power consumption: 5 W maximum

• Estimated Battery Life (2-track XYH-5s recording):
Alkaline: ~15 hours
NiMH (1900 mAh): ~12 hours
Lithium: ~26 hours

• Dimensions & Weight:
86.0 mm (W) × 221.0 mm (D) × 54.6 mm (H)
477 g (including batteries)

• Reference:
0 dBu = 0.775 Vrms
